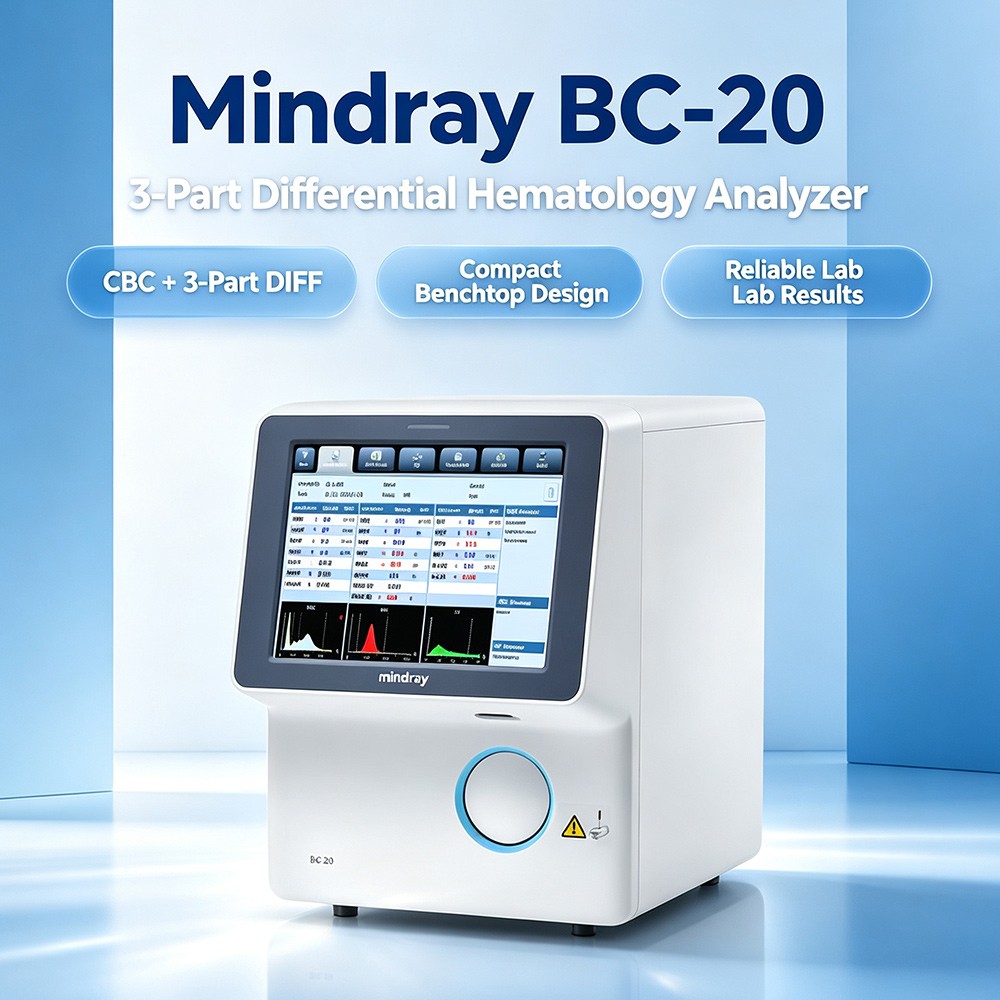

Mindray BC-20 Auto Hematology Analyzer
- Compact 3-part differential analyzer built for small labs
- Low-volume 9 µL whole-blood sampling mode
- Suitable for pediatric and routine clinical testing
- Reliable CBC results with fast turnaround
Hematology & Laboratory
ICEN supplies twelve Mindray hematology analyzers — the BC-10, BC-20, BC-20s, BC-30s, BC-5120, BC-5150, BC-5380, BC-5390CRP, BC-6800, BC-760, BC-7600 Series and BC-5000 — covering CBC testing from 3-part differential screening through to 5-part differential analysis for hospital and clinic laboratories. Several models use only 9 to 35 µL of blood per sample.
Category Overview
Hematology & Laboratory supplied by ICEN
The analyzers step up by differential capability and workload. BC-20 is a compact 3-part differential analyzer built for small labs, using a 9 µL whole-blood sampling mode suitable for paediatric and routine testing. BC-5000, BC-5150 and BC-5380 are 5-part differential analyzers, with BC-5380 reporting CBC and DIFF from 20 µL in about a minute at up to 60 samples per hour, and BC-5150 adding an NLR parameter to every result. BC-5390CRP reports CBC, 5-part DIFF and FR-CRP simultaneously from one tube at about 35 µL. BC-6800 and BC-7600 Series are the higher-throughput automated platforms, with BC-6800 rated at 125 tests per hour with a 100-tube autoloader and BC-7600 delivering CBC and ESR from one tube via an integrated ESR module.
ICEN lists 12 models in this category, including Mindray BC-20 Auto Hematology Analyzer, Mindray BC-5390CRP Hematology Analyzer and Mindray BC-6800 Auto Hematology Analyzer and Mindray BC-20s and Mindray BC-30s. ICEN provides sourcing and project support for distributors, hospitals and healthcare programs, and can confirm configuration, documentation and destination-market requirements before quotation.
Model comparison
Hematology & Laboratory model comparison
Specifications as published for each model in this category. Confirm final configuration, documentation and destination-market requirements with our export team before purchase.
| Model | Positioning | Key specifications |
|---|---|---|
| Mindray BC-20 Auto Hematology Analyzer | 3-part differential (9 uL) | Compact 3-part differential analyzer built for small labs · Low-volume 9 µL whole-blood sampling mode |
| Mindray BC-5000 Auto 5-Diff Hematology Analyzer | 5-part differential | 23 parameters (CBC + 5-part DIFF) with 3 histograms and 3 scattergrams · Throughput 40 samples per hour |
| Mindray BC-5150 Auto 5-Diff Hematology Analyzer | 5-part differential + NLR | CBC + 5-part WBC DIFF with semi-conductor laser scatter technology · RBC/PLT counting aperture 50 um in diameter; better performance on low-PLT samples |
| Mindray BC-5380 Automated Hematology Analyzer | 5-part (20 uL, 60 samples/h) | Only 20 uL blood for CBC+DIFF report in about 1 minute (15 uL for CBC) · Up to 60 samples per hour throughput |
| Mindray BC-5390CRP Hematology Analyzer | 5-part + FR-CRP (35 uL) | Simultaneous CBC + 5-part DIFF and FR-CRP from one tube · Requires only ~35 µL blood per sample |
| Mindray BC-6800 Auto Hematology Analyzer | High throughput (125 T/H) | CBC + 5-part differential with reticulocyte and NRBC options · Throughput of 125 tests/hour with 100-tube autoloader |
| Mindray BC-7600 Series Auto Hematology Analyzer | CBC + ESR (integrated) | CBC + ESR results from one tube in a single test · Integrated ESR module — no separate analyzer needed |
| Mindray BC-10 Auto Hematology Analyzer | 3-part differential | Compact benchtop 3-part analyzer · 20 parameters and 3 histograms |
| Mindray BC-760 Auto Hematology Analyzer | 5-part differential + ESR | CBC and ESR from one sample · optical PLT-H · SF Cube 3D analysis |
| Mindray BC-5120 Auto Hematology Analyzer | 5-part differential | Five-part WBC differential · official datasheet supplied on request |
Products
Hematology & Laboratory available from ICEN
12 models currently listed in this category. Contact our team for configuration, documentation and pricing.

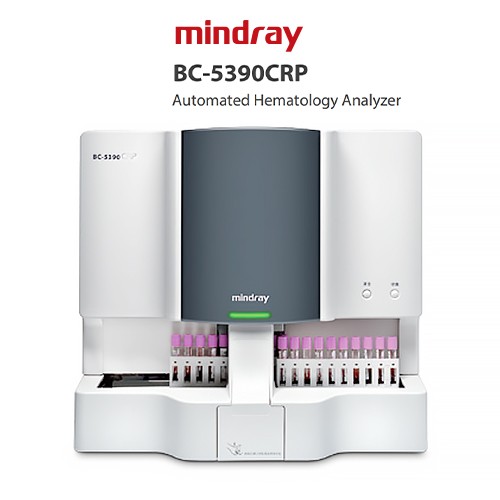

Mindray BC-5390CRP Hematology Analyzer
- Simultaneous CBC + 5-part DIFF and FR-CRP from one tube
- Requires only ~35 µL blood per sample
- Capillary whole-blood mode for pediatric use
- Laser flow cytometry plus latex immunoturbidimetry
- Up to 60 samples per hour with autoloader

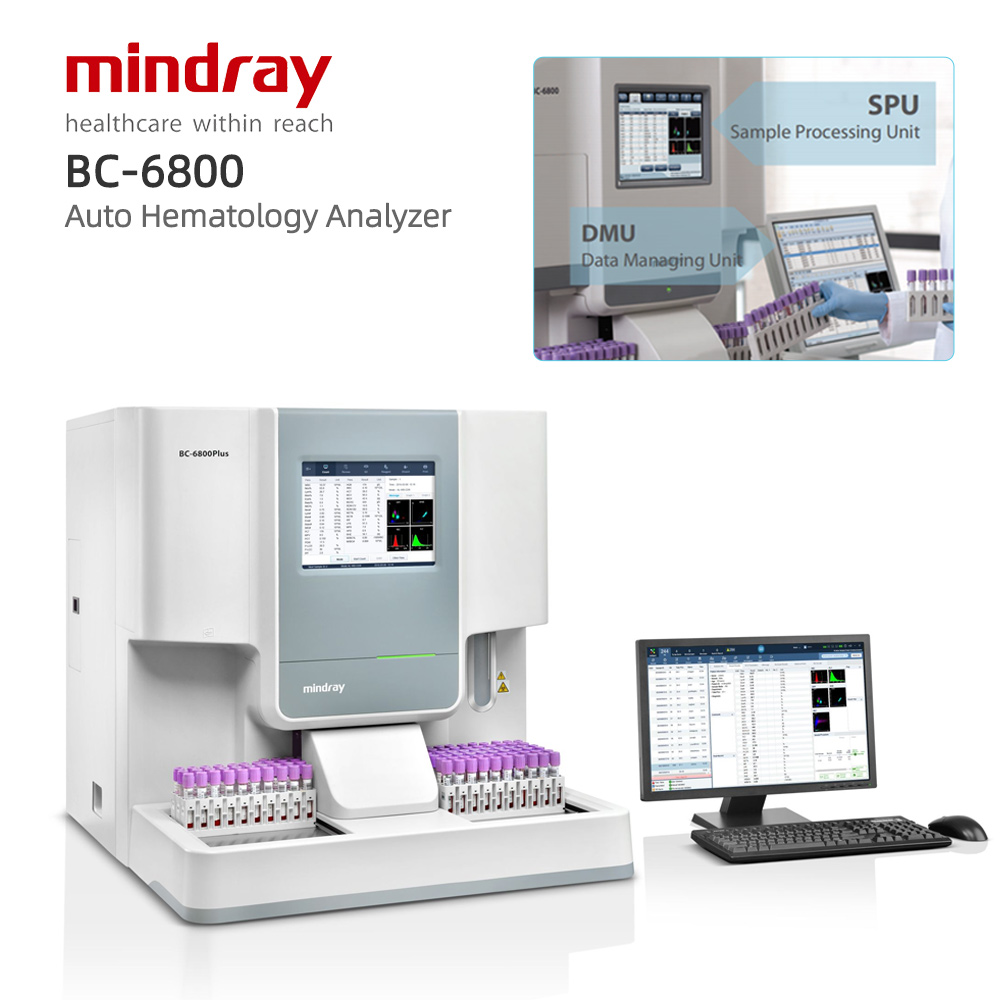

Mindray BC-6800 Auto Hematology Analyzer
- CBC + 5-part differential with reticulocyte and NRBC options
- Throughput of 125 tests/hour with 100-tube autoloader
- Fluorescence flow cytometry (PLT-O) for accurate platelets
- Body fluid analysis capability
- Stores up to 100,000 results with bi-directional LIS

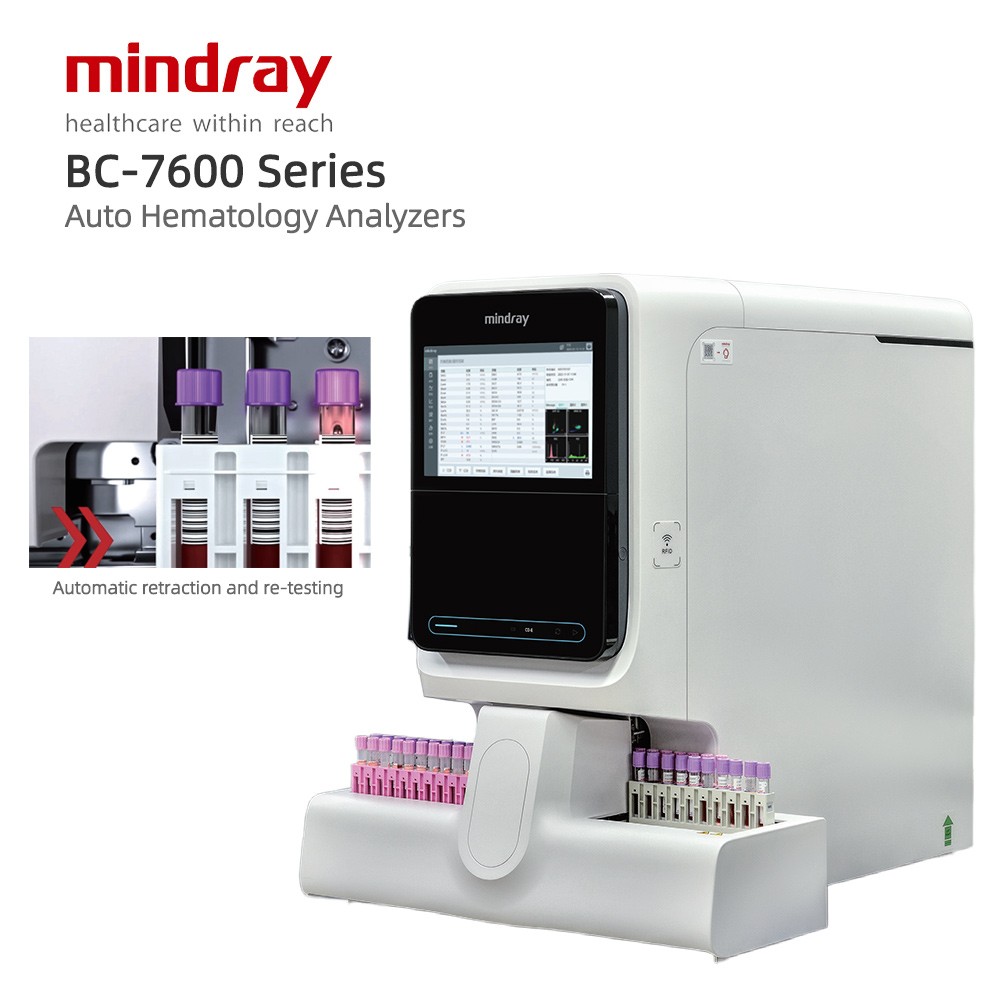

Mindray BC-7600 Series Auto Hematology Analyzer
- CBC + ESR results from one tube in a single test
- Integrated ESR module — no separate analyzer needed
- 5-part differential with clinical alarms for abnormal cells
- Fully automated retesting and reflex workflows
- High-throughput analysis with minimal sample consumption

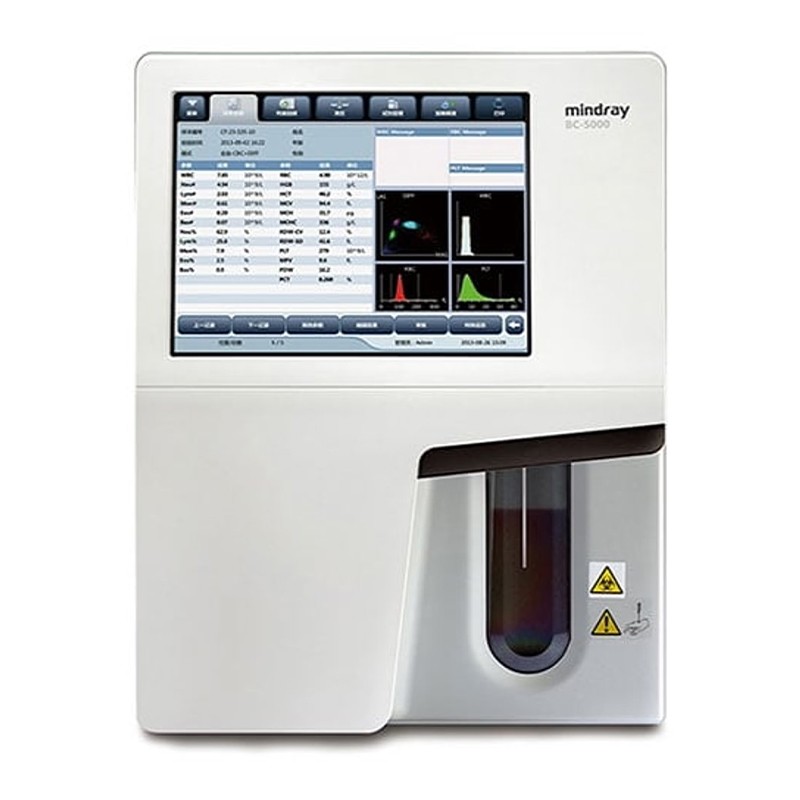

Mindray BC-5000 Auto 5-Diff Hematology Analyzer
- 23 parameters (CBC + 5-part DIFF) with 3 histograms and 3 scattergrams
- Throughput 40 samples per hour
- Sample volume 15 uL whole blood / 20 uL prediluted, ideal for pediatrics
- Cyanide-free HGB reagent; impedance for RBC/PLT; FCM + laser scatter + chemical dye for WBC 5-part DIFF
- 10.4-inch TFT touch screen; stores up to 20,000 results; LAN (HL7) and bi-directional LIS

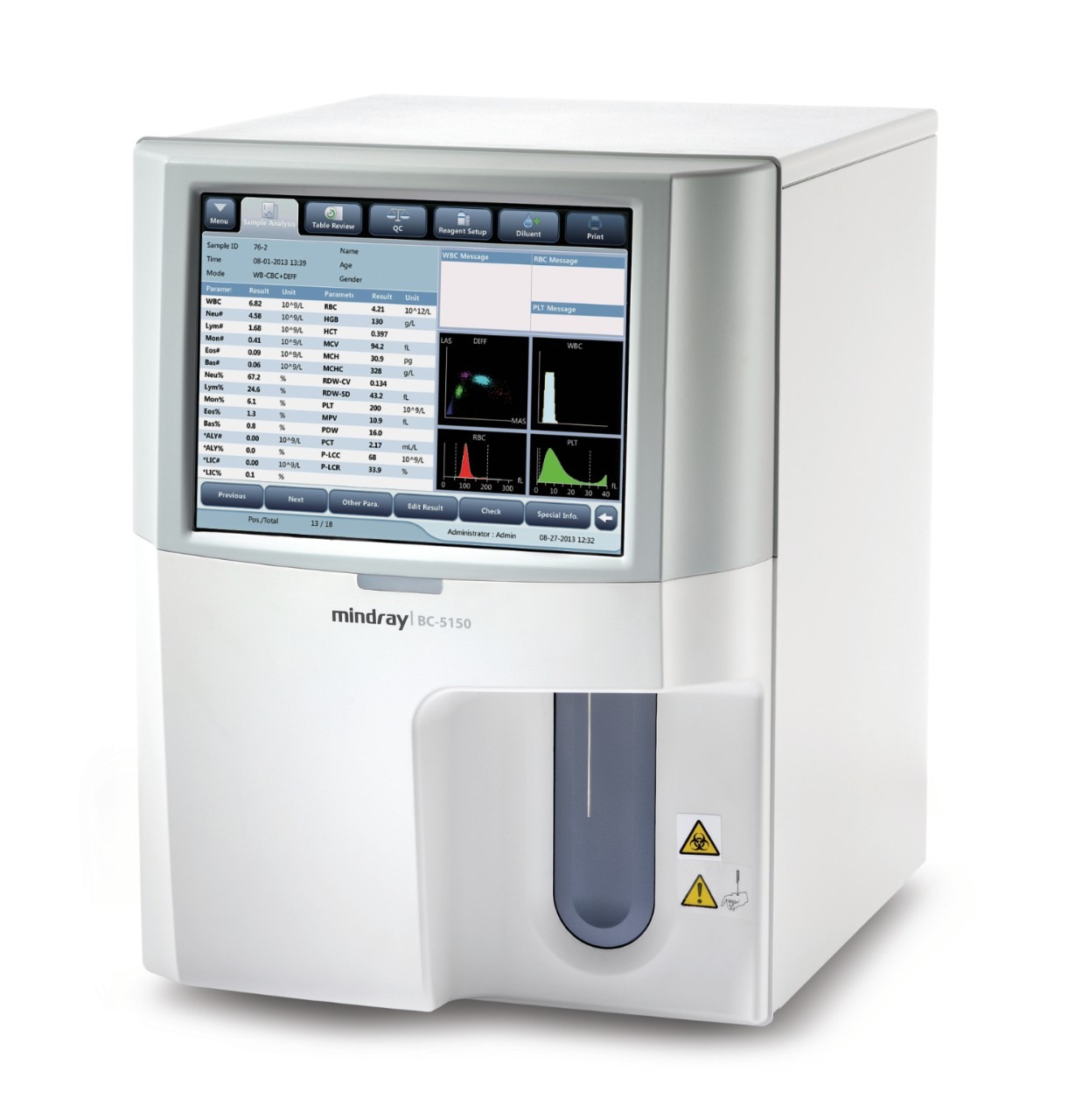

Mindray BC-5150 Auto 5-Diff Hematology Analyzer
- CBC + 5-part WBC DIFF with semi-conductor laser scatter technology
- RBC/PLT counting aperture 50 um in diameter; better performance on low-PLT samples
- 10.4-inch TFT touch screen; instrument fully operable without an external PC
- Only 3 routine reagents required, with 2-year shelf life and reduced consumption
- NLR parameter in every CBC+DIFF result; bi-directional LIS and HL7 support

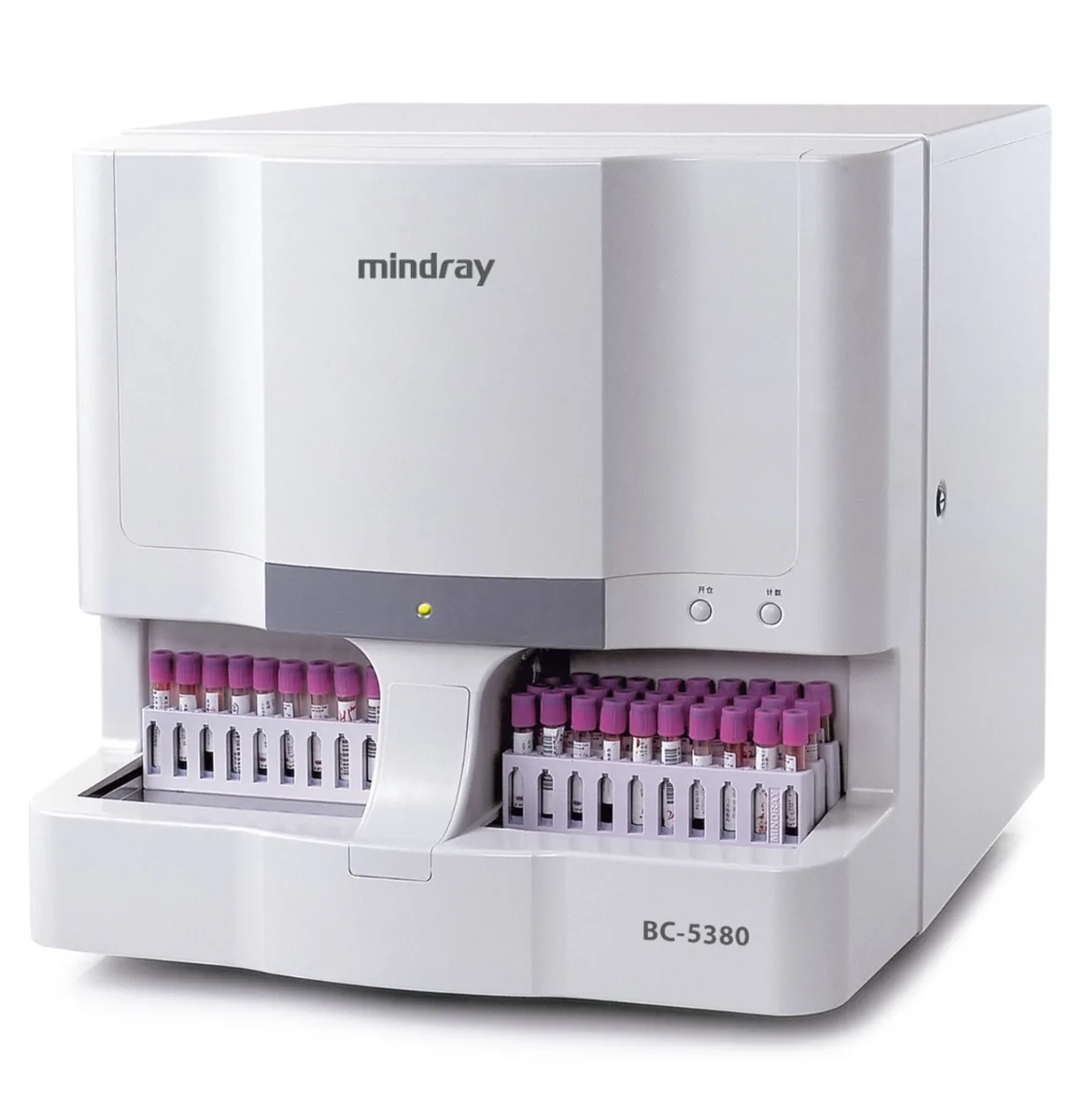

Mindray BC-5380 Automated Hematology Analyzer
- Only 20 uL blood for CBC+DIFF report in about 1 minute (15 uL for CBC)
- Up to 60 samples per hour throughput
- 30-tube autoloader for continuous loading plus independent STAT/capillary compartment
- Semi-conductor laser scatter with patented cluster algorithm for accurate WBC differential
- Windows-based software: customizable reports, auto-cleaning, day-to-day QC and bi-directional LIS
Mindray BC-10 Auto Hematology Analyzer
- Compact benchtop 3-part differential analyzer
- 20 reported parameters and 3 histograms
- 10.4-inch touch screen with histogram display
- Official specification fully published
Mindray BC-760 Auto Hematology Analyzer
- CBC and ESR results from a single sample
- Optical PLT-H on every CBC and DIFF test
- SF Cube 3D analysis technology
- Autoloader model in the official BC-700 Series
Mindray BC-5120 Auto Hematology Analyzer
- Five-part WBC differential per Mindray controls documentation
- Official designation confirmed by Mindray
- Datasheet supplied before you commit
- Gaps stated openly rather than filled in
Mindray BC-20s Auto Hematology Analyzer
- 19 parameters plus 3 histograms, 3-part differential
- 9 microlitre whole blood; 20 microlitres prediluted
- 40 samples per hour
- 8.4-inch TFT touch screen
- 200,000 results stored with histograms
Mindray BC-30s Auto Hematology Analyzer
- 21 parameters plus 3 histograms, 3-part differential
- 70 samples per hour
- 10.4-inch TFT touch screen
- 500,000 results stored with histograms
- WiFi and bi-directional LIS with intelligent flagging
FAQ
Hematology & Laboratory - common questions
Which Hematology & Laboratory models can ICEN supply?
ICEN currently lists 10 models in this category: Mindray BC-20 Auto Hematology Analyzer; Mindray BC-5390CRP Hematology Analyzer; Mindray BC-6800 Auto Hematology Analyzer; Mindray BC-7600 Series Auto Hematology Analyzer; Mindray BC-5000 Auto 5-Diff Hematology Analyzer; Mindray BC-5150 Auto 5-Diff Hematology Analyzer; Mindray BC-5380 Automated Hematology Analyzer; Mindray BC-10 Auto Hematology Analyzer; Mindray BC-760 Auto Hematology Analyzer; Mindray BC-5120 Auto Hematology Analyzer.
Can ICEN provide a quotation for Hematology & Laboratory?
Yes. Use the Request a Quote button to send the product model, quantity, target market and requirements to our export team.
Can you support international shipment?
ICEN provides export coordination and can discuss shipping arrangements, documentation and delivery terms for your project.
Is availability the same in every country?
No. Product availability, configuration, registration and market authorization can vary by country. Confirm the applicable market requirements with ICEN before purchase.
